SERVOMOLD

Servo unscrewing unit

circle bg 1
Servomold unscrewing units

The smooth, fast and clean unscrewing of moulded parts requires powerful unscrewing units that integrate compactly into the mould. Depending on the application, our servo unscrewing units are grouped in different versions.

Servo unscrewing units with spur gears

Offered in different sizes and performance classes –
nest spacing is adapted to your individual needs

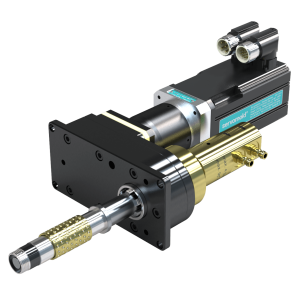

Servo unscrewing unit SAE (single)

SAE

Servo unscrewing unit “Single

Various sizes and performance classes available

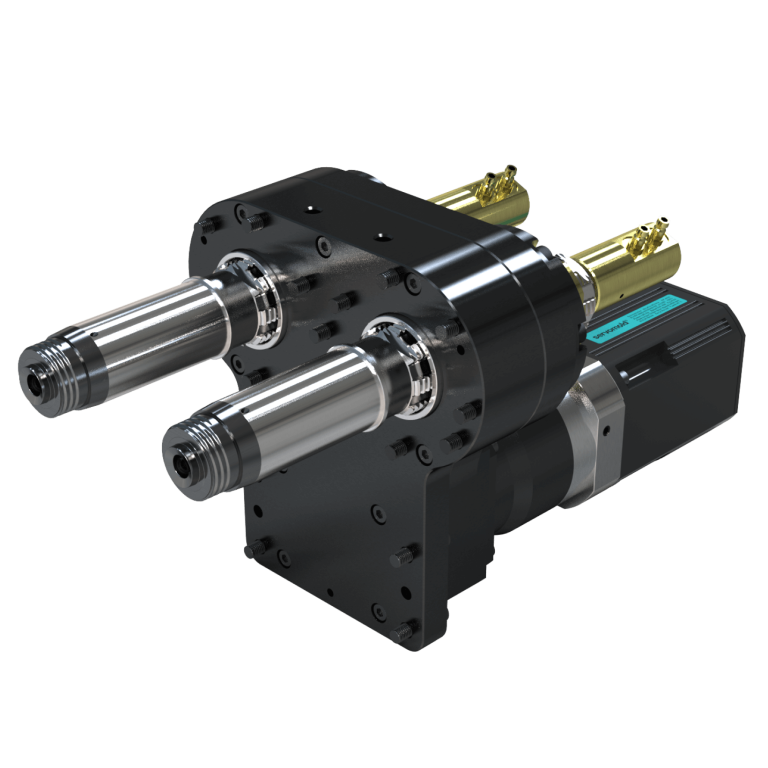

Servomold unscrewing units

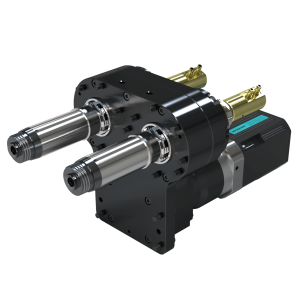

SAD

Servo unscrewing unit “Double”

Gear units for double unscrewing

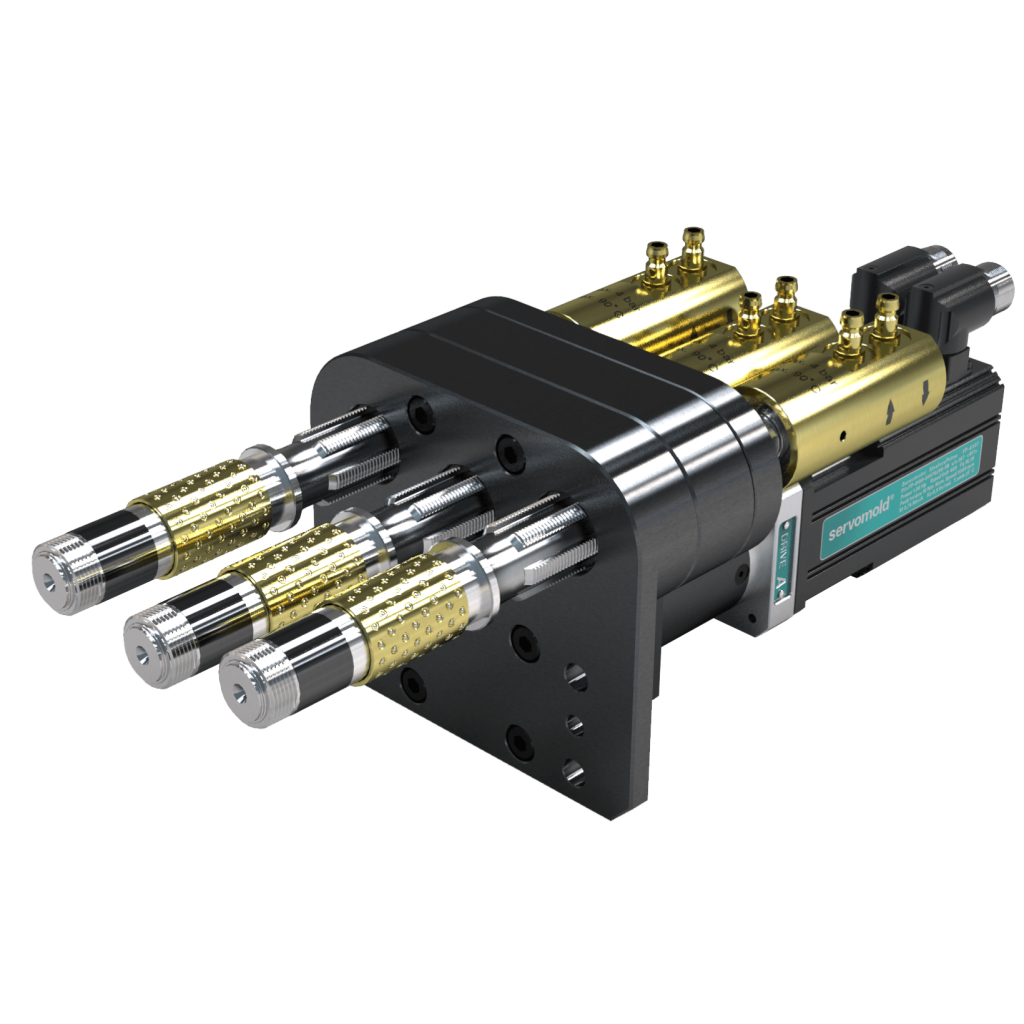

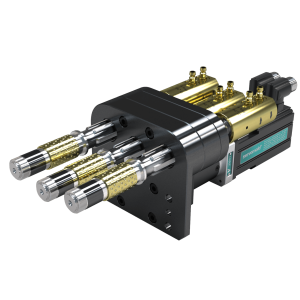

Servo unscrewing unit SAR (triple)

SAR

Servo unscrewing unit “3-fold”

Gear units for 3-fold unscrewing

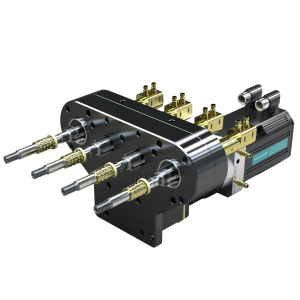

Servo unscrewing unit SAV (quadruple)

SAV

Servo unscrewing unit “4-fold

Gear units for 4-fold unscrewing

Servo unscrewing units with worm gears

Completely encapsulated gear units (worm gear) connected to a servo drive unit SAK via a cardan shaft

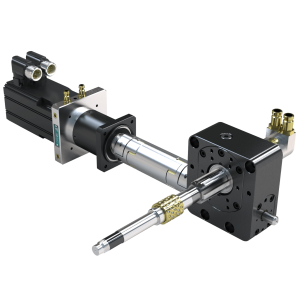

Servo worm unscrewer SSE (single)

SSE

Servo worm unscrewing unit “Single

Can be mounted in any position on or in the mould

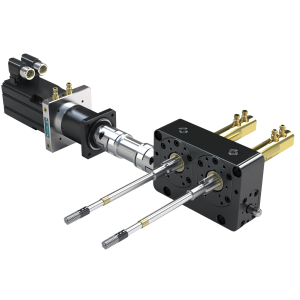

Servo worm unscrewer SSD (double)

SSD

Servo worm unscrewing unit “Double”

Gear units for double unscrewing

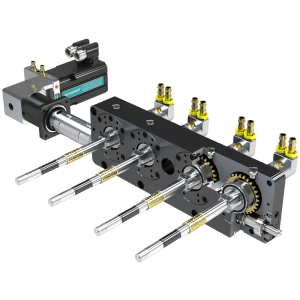

Servo worm unscrewer SSV (quadruple)

SSV

Servo worm unscrewing unit “4-fold”

Gear units for 4-fold unscrewing

Servo unscrewing units for multi-cavity applications

The unscrewing unit SAM with cores rotating on the spot is individually combined from drive unit, gear components and thread core system in different sizes and performance classes and configured for the respective unscrewing application. For demoulding, the stripper system of the unscrewing unit is moved back and forth via lead screws

Complex assembly of hydraulic connectors and valves.

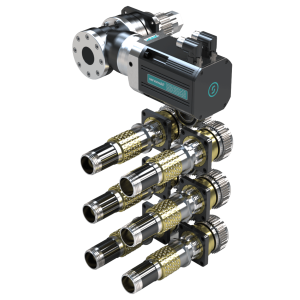

SAM-LM

Servo unscrewing unit “Multi” (guide nut)

Can be mounted in any position on or in the mould

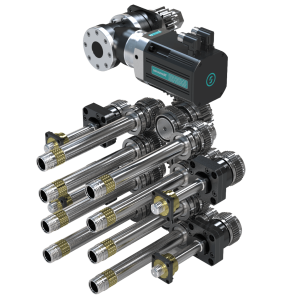

Servo unscrewing unit SAM-FD for rotating cores

SAM-FD

Servo unscrewing unit “Multi” (cores rotating in place)

Gear units for double unscrewing

Servo unscrewing units with spur gears

SAE / SAD/ SAR/ SAV

The unscrewing unit is individually combined from the drive unit, gearbox and thread core system in various sizes and performance classes and configured for the respective unscrewing application.

Unscrewing unit at a glance

  • Constructed and configured according to individual customer requirements
  • 100% positional and repeat accuracy
  • High torques and high speeds
  • Durable, robust and suitable for clean rooms
  • Drive unit available with straight or angled planetary gearboxes
  • Can be supplemented with SDD thread core cooling

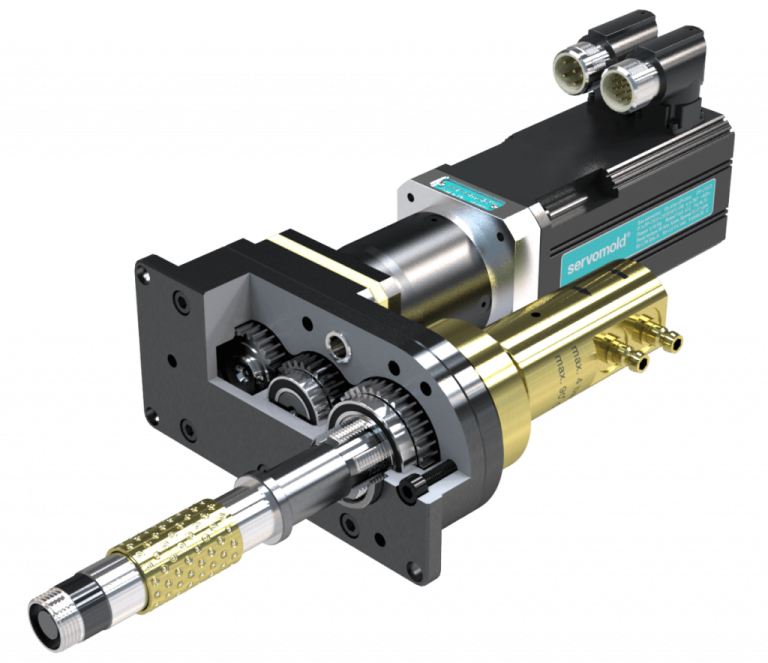

Servo unscrewing unit SAE, sectional detail view

Maintenance-free high-performance servo motors and planetary gearheads

Servomold gearbox

Can be completed with individual thread core systems

Patented system to avoid radial drive forces

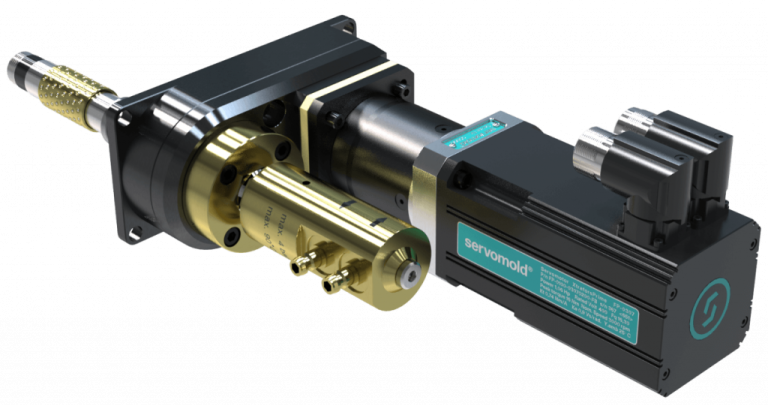

Servo unscrewing unit SAE, rear view

Pre-stressed precision ball cages for optimum concentricity

Lead screw nut for axial movement free from drive influences

Optional thread core cooling SDD (rotary cooling)

Servo unscrewing unit SAE (single)
Servo unscrewing unit “Single
Servomold unscrewing units
Servo unscrewing unit “Double”
Servo unscrewing unit SAR (triple)
Servo unscrewing unit “3-fold”
Servo unscrewing unit SAV (quadruple)
Servo unscrewing unit “4-fold”

Servo unscrewing units with worm gears

SSE / SSD/ SSV

The unscrewing unit is individually combined from the drive unit, elastomer coupling, worm gear and thread core system in various sizes and performance classes and configured for the respective unscrewing application.

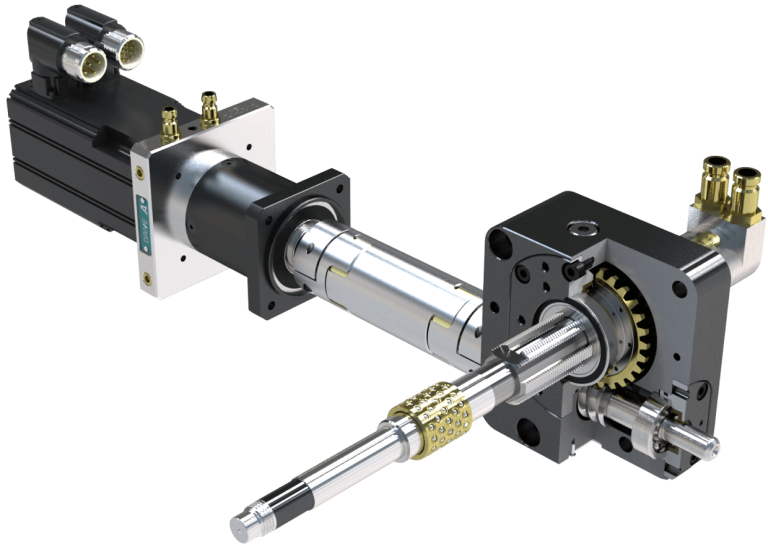

Advanced servo motor and gearbox assembly

Servomold worm gear unit

Maintenance-free high-performance servo drive unit SAK

Can be completed with individual thread core systems

Patented system to avoid radial drive forces

Elastomer coupling for power transmission and decoupling from temperature influences

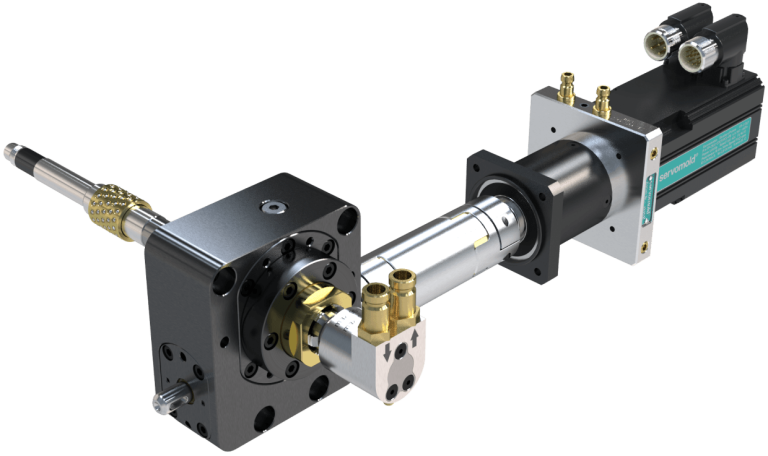

Servo worm unscrewer SSE, rear view

Pre-stressed precision ball cages for optimum concentricity

Optional thread core cooling SDD / SDG (rotary cooling)

Servo worm unscrewer SSE (single)
Servo unscrewing unit “Single
Servo worm unscrewer SSD (double)
Servo unscrewing unit “Double”
Servo worm unscrewer SSV (quadruple)
Servo unscrewing unit “4-fold”
