Contourable TGC

CAD DATA
Contourable TGC

Contourable tunnel gate inserts version TGC – for vertical gating



  • for contouring up to 10mm
  • individually adjustable
  • available in 2 degrees of hardness (60 HRC / 40 HRC)
TGC Sizes / Shot Weights
TGC Sizes / Shot Weights
TGC-XS TGC-S TGC-1 TGC-2 TGC-3 TGC-4
Max. contour depth 1 2 2 3 5 10
Gate size 0.4 – 0.6 0.4 – 0.8 0.6 – 1.2 0.8 – 1.8 0.5×4.5 – 1.5×5.5 0.5×4.5 – 1.5×5.5
Channel Ø (mm) 2.5 2.5 4 6 8 8
Low viscosity (NV)* 5 12 35 120 1000 1000
Medium viscosity (MV)* 4 7 25 75 500 500
High viscosity (HV)* 3 5 15 50 300 300

* Max. shot weight (g) | NV: low viscosity | MV: medium viscosity | HV: high viscosity

TGC

Contourable TGC types
TGC Detailed View

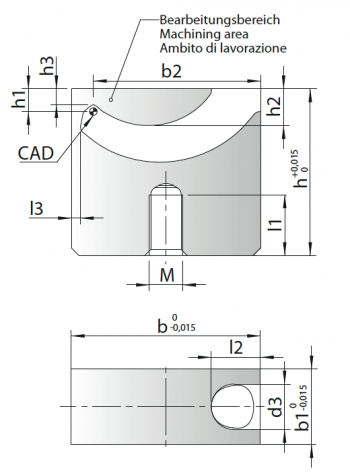

TGC Detailed Dimensions
Type b b1 b2 d3 h h1 h3 l1 l2 l3 M HRC
TGC-XS 10 5 8.5 2.5 12 1 0.6 5 3.2 0.7 4 Version U = 40 HRC
Version H = 60 HRC
TGC-S 15 6 12.3 2.5 18 2 1.5 8 4 0.9 4 Version U = 40 HRC
Version H = 60 HRC
TGC-1 18 8 16 4 22 2 1.3 9 5.2 0.9 5 Version U = 40 HRC
Version H = 60 HRC
TGC-2 25 10 22.1 6 22 3 2.1 8 6.5 1.2 5 Version U = 40 HRC
Version H = 60 HRC
TGC-3 30 12 26.9 8 27 5 4.1 9 7 1.2 6 Version U = 40 HRC
Version H = 60 HRC
TGC-4 45 12 41.2 8 36 10 9.1 8 9.6 1.8 6 Version U = 40 HRC
Version H = 60 HRC

Thermoplastic Elastomers (TPE)

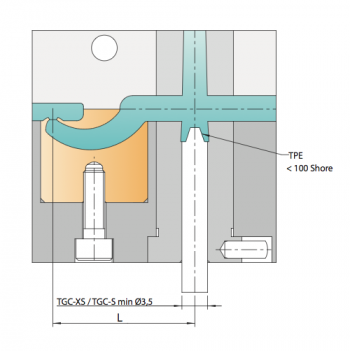

Contourable TGC distance to ejector A

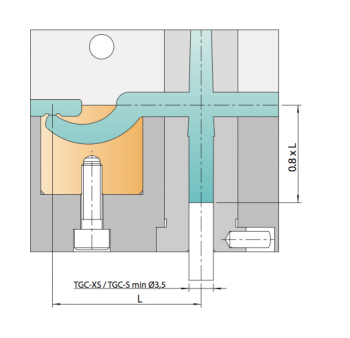

Contourable TGC distance to ejector B
TPE Ejector Distances (TGC)

  • Low shore hardness = shorter distance L
  • Use centering pin
  • Max. hardness 100 Shore A
Type TPE, TPU etc. PE, PP, PET etc. PC/ABS, PA, POM, HI-PC etc. PA+GF, PC, SAN, PMMA etc.
TGC-XS 12–16 13–20 16–23 22–29
TGC-S 16–21 18–25 21–28 27–34
TGC-1 21–26 26–34 31–39 36–45
TGC-2 28–33 31–39 36–44 41–50
TGC-3 33–38 38–48 43–53 48–58
TGC-4 48–53 53–63 58–68 ?

Standard Vestige / Small Vestige

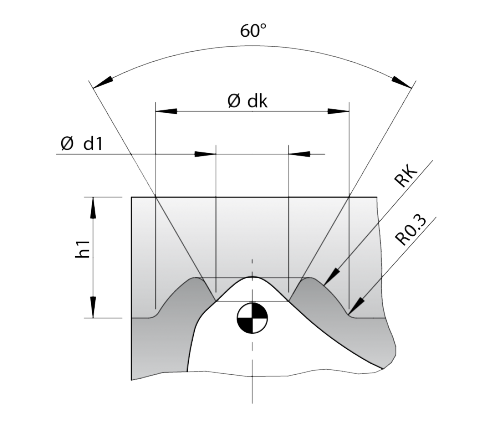

Contourable TGC XS S 1 2 standard dome

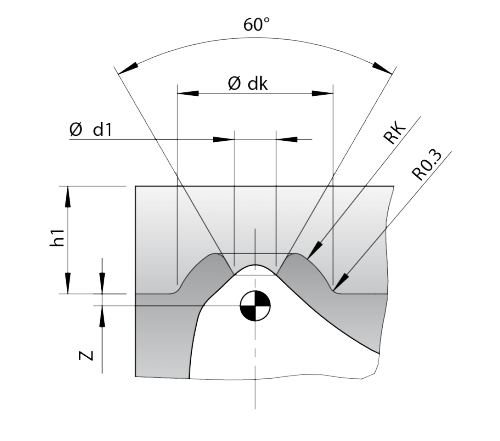

Contourable TGC XS S 1 2 small dome
Vestige – TGC-XS / -S / -1 / -2
Vestige Geometry – TGC-XS / -S / -1 / -2
Type Dome h1 d1 max dk Rk Z
TGC-XS Standard 1.0 0.6 2.5 1.6 -
TGC-S Standard 2.0 0.8 2.7 1.7 -
TGC-1 Small 1.8 0.7 2.6 1.4 0.2
TGC-1 Standard 2.0 1.2 3.2 1.8 -
TGC-2 Small 2.75 1.2 3.5 2.0 0.25
TGC-2 Standard 3.0 1.8 4.5 2.6 -

Vestiges - TGC-3 / -4 (Standard Vestige) / ( Small Vestige)

Contourable TGC 3 4 standard dome A
Contourable TGC 3 4 standard dome B
Contourable TGC 3 4 small dome A
Contourable TGC 3 4 small dome B

Vestige versions

Contourable TGC dome variants spherical dome with cone

Spherical vestige with cone

Contourable TGC dome variants flattened dome without cone

Spherical vestige with cone

Contourable TGC dome variants flattened dome without cone

Flattened vestige without cone

Examples of installation

Contourable TGC installation examples under flat surfaces

under surface

Contourable TGC installation examples under a curved surface

under rounded surface

Contourable TGC installation examples halved gate point

half gate point

Contourable TGC installation examples gating on an incline

angled gating

Downloads TGC Further documents CAD DATA/STP
