The chart shows the shot weights which can be reached with the respective sizes depending on the viscosity of the plastic materials used.
| SGC-XS | SGC-S | SGC-1 | SGC-2 | SGC-3 | |
|---|---|---|---|---|---|
| Anschnitt | 0.4 - 0.8 | 0.4 - 1.0 | 0.6 - 1.4 | 0.8 - 2.1 | ~ Ø 1.1 - 3.3 |
| Ø Kanal | 2.5 | 2.5 | 4 | 6 | 8 |
| NV* | 12 | 20 | 35 | 250 | 1000 |
| MV* | 7 | 12 | 25 | 120 | 500 |
| HV* | 5 | 8 | 15 | 90 | 300 |
* max. shot weights (g) | NV: low viscosity | MV: medium viscosity | HV: high viscosity

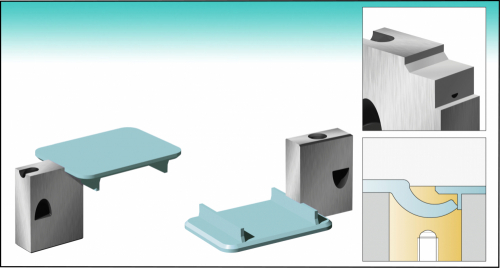

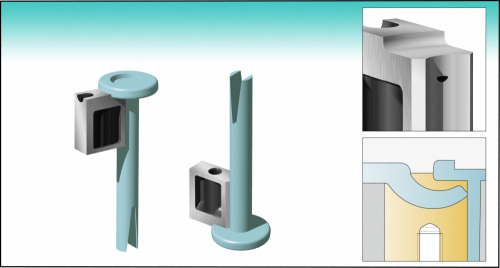

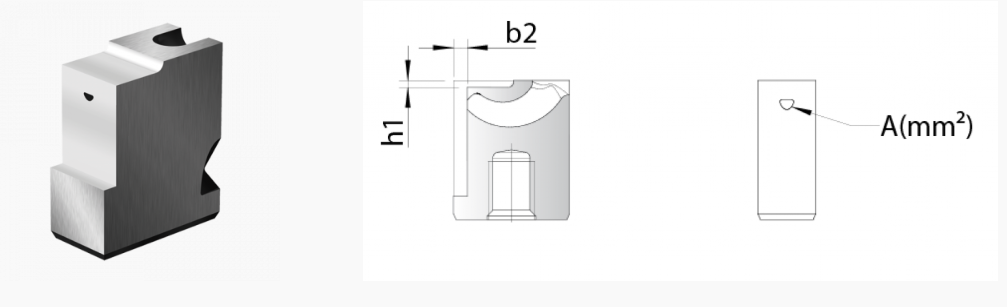

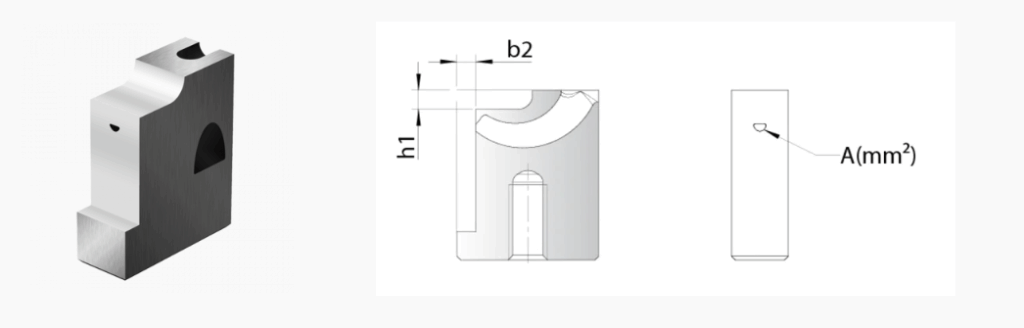

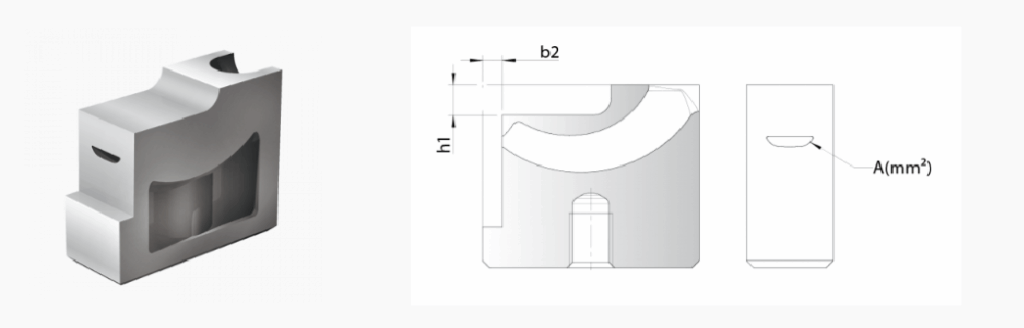

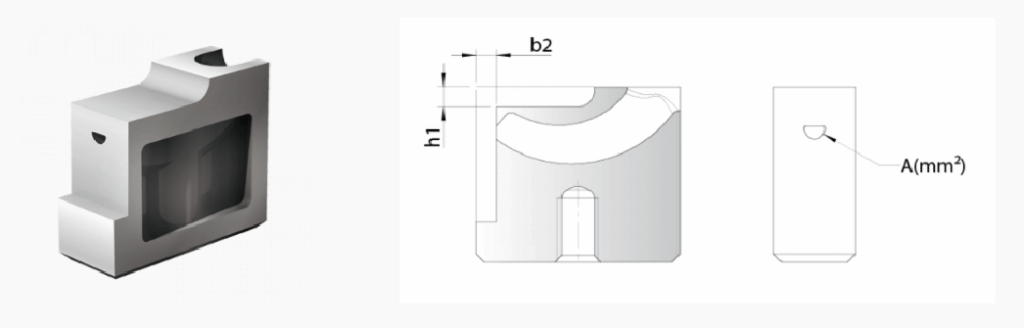

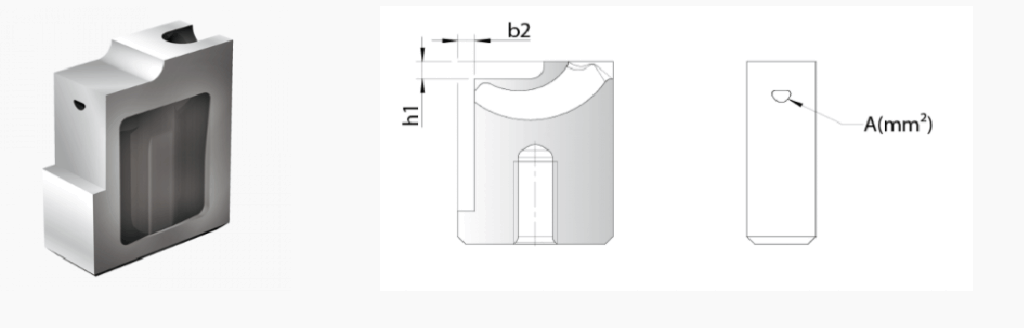

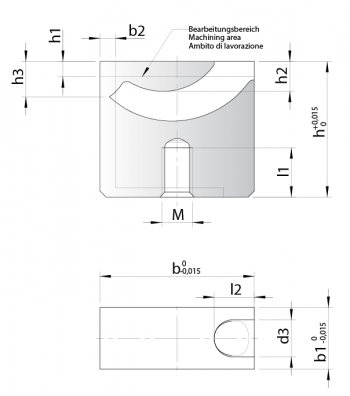

| b | b1 | b2 max. | d3 | h | h1 max. | h2 | h3 | l1 | l2 | M | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SGC-XS | 10 | 5 | 1.1 | 2.5 | 12 | 0-6 | 1.9 | 2.0 | 5 | 3.2 | 4 |
| SGC-S | 15 | 6 | 2.0 | 2.5 | 18 | 2 | 3.5 | 4.0 | 8 | 4 | 4 |
| SGC-1 | 18 | 8 | 1.8 | 4 | 22 | 2 | 3.5 | 4.1 | 9 | 5.2 | 5 |
| SGC-2 | 25 | 10 | 2.5 | 6 | 22 | 2.5 | 4.8 | 5.7 | 8 | 6.5 | 5 |
| SGC-3 | 30 | 12 | 2.8 | 8 | 27 | 4.5 | 7.5 | 8.4 | 9 | 7 | 6 |
| A [mm²] | ⌀ [mm] | b2 [mm] | |
|---|---|---|---|
| 1 | 0.13 | 0.4 | 0.9 |
| 2 | 0.3 | 0.6 | 1.0 |
| 3 | 0.53 | 0.8 | 1.1 |
| A [mm²] | ⌀ [mm] | b2 [mm] | |
|---|---|---|---|
| 1 | 0.15 | 0.4 | 1.7 |
| 2 | 0.33 | 0.6 | 1.8 |
| 3 | 0.55 | 0.8 | 1.9 |
| 4 | 0.79 | 1.0 | 2.0 |
| A [mm²] | ⌀ [mm] | b2 [mm] | |
|---|---|---|---|
| 1 | 0.28 | 0.6 | 1.4 |
| 2 | 0.53 | 0.8 | 1.5 |
| 3 | 0.82 | 1.0 | 1.6 |
| 4 | 1.15 | 1.2 | 1.7 |
| 5 | 1.52 | 1.4 | 1.8 |
| A [mm²] | ⌀ [mm] | b2 [mm] | |
|---|---|---|---|
| 1 | 0.28 | 0.6 | 1.7 |
| 2 | 0.54 | 0.8 | 1.8 |
| 3 | 0.84 | 1.0 | 1.9 |
| 4 | 1.20 | 1.2 | 2.0 |
| 5 | 1.57 | 1.4 | 2.1 |
| 6 | 2.00 | 1.6 | 2.2 |
| 7 | 2.43 | 1.75 | 2.3 |
| 8 | 2.90 | 1.9 | 2.4 |
| 9 | 3.40 | 2.1 | 2.5 |
| A [mm²] | ⌀ [mm] | b2 [mm] | |
|---|---|---|---|
| 1 | 1.00 | 1.1 | 2.0 |
| 2 | 1.75 | 1.5 | 2.1 |
| 3 | 2.56 | 1.8 | 2.2 |
| 4 | 3.43 | 2.1 | 2.3 |
| 5 | 4.35 | 2.35 | 2.4 |
| 6 | 5.32 | 2.6 | 2.5 |
| 7 | 6.33 | 2.85 | 2.6 |
| 8 | 7.38 | 3.0 | 2.7 |
| 9 | 8.48 | 3.3 | 2.8 |

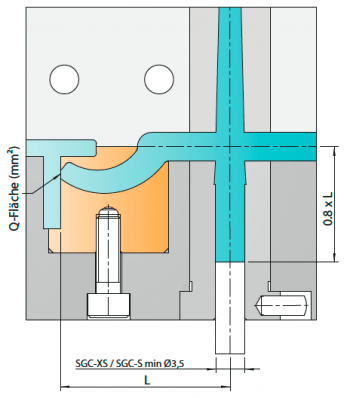

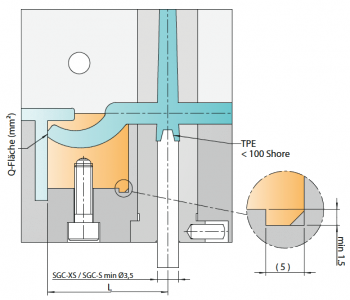

| TPE, TPU etc. | PE, PP, PET etc. | PC/ABS, PA, POM, HI-PC etc. | PA+GF, PC, SAN, PMMA etc. | |
|---|---|---|---|---|
| SGC-XS | 12–16 | 13–20 | 16–23 | 22–29 |
| SGC-S | 16–21 | 18–25 | 21–28 | 27–34 |
| SGC-1 | 21–26 | 26–34 | 31–39 | 36–45 |
| SGC-2 | 28–33 | 31–39 | 36–44 | 41–50 |
| SGC-3 | 33–38 | 38–48 | 43–53 | 48–58 |
Contourable tunnel gate inserts version TG – for vertical gating

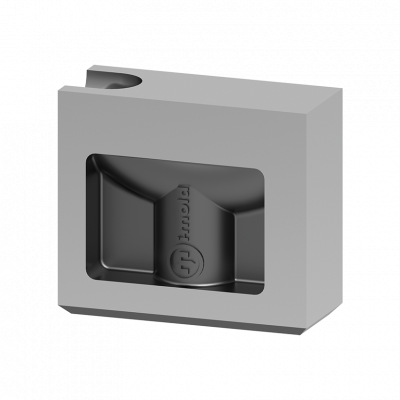

Contourable tunnel gate inserts version SGC – for side gating
Contourable tunnel gate inserts version TPS – for side gating
