Gate inserts - TPS

CAD DATA
Side gating TPS

Side-gating

Straight standard sub-gate for side-gating

  1. straight standard sub-gate for side-gating
  2. integrated dead-end recess reduces loss of pressure and shear stress
  3. highly wear-resistant hot working steel M2 (1.3343) – 54+2 HRC
Sizes / Shot Weights (TPS Series)
Sizes / Shot Weights (TPS Series)
TPS-S TPS-1 TPS-2 TPS-3
Anschnitt 0.4 - 0.8 0.8 - 1.8 0.8 - 2.8 1.1 - 4.5
NV* 30 120 600 1800
MV* 20 75 350 1000
HV* 12 50 175 600

* max. shot weights (g) | NV: low viscosity | MV: medium viscosity | HV: high viscosity

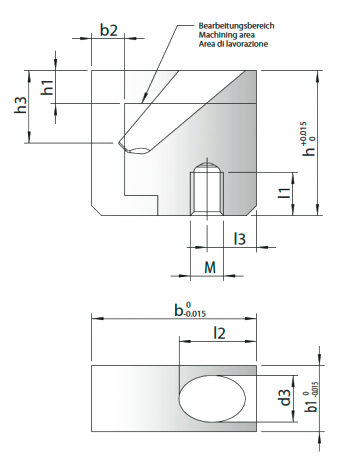

Side gating TPS Details
TPS Dimensions
TPS Dimensions
b b1 b2 max. d3 h h1 max. h3 l1 l2 l3 M
TPS-S 15 6 2.4 4 18 4 ~7 6 7.1 5.5 4
TPS-1 18 8 2.6 6 22 5 ~9 6 8.4 6 4
TPS-2 25 10 5 8 22 6 ~11 6 11.8 7.5 5
TPS-3 30 12 6.5 10 27 7 ~13 6 14.1 8 5

TPS-S

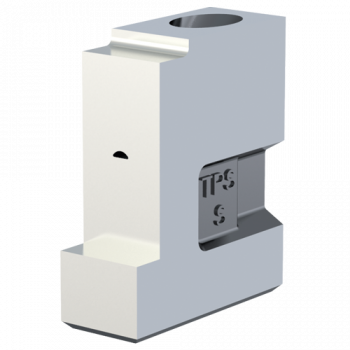

Side gating TPS S view

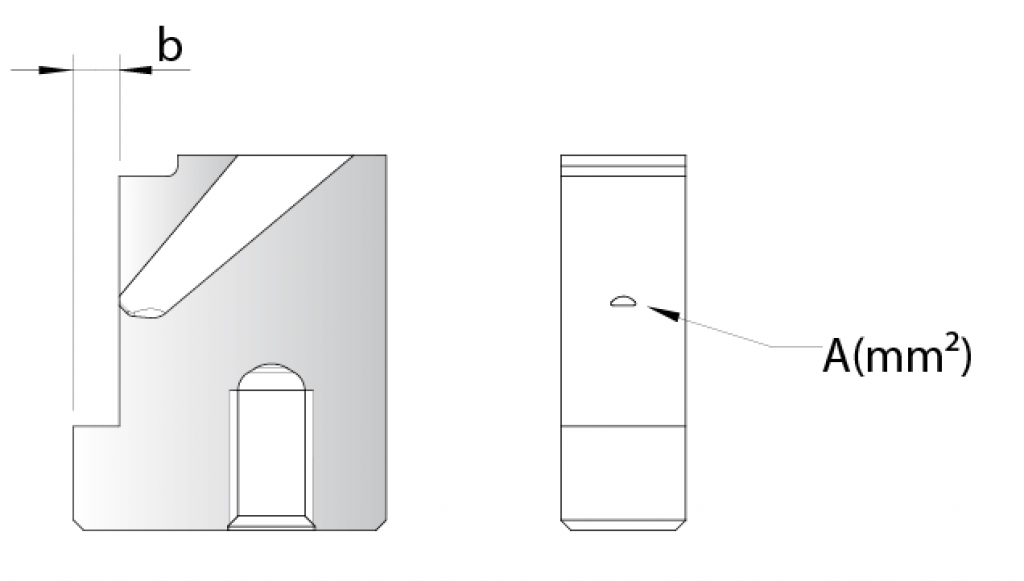

Side gating TPS S drawing
Gate Dimensions
A [mm²] ⌀ [mm] b2 [mm]
10.120.42.1
20.400.72.2
30.751.02.3
41.131.22.4

TPS-1

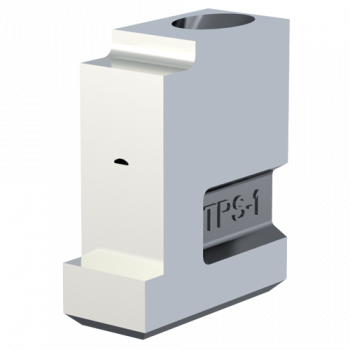

Side gating TPS 1 view
Side gating TPS S drawing
Gate Geometry Table
A [mm²] ⌀ [mm] b2 [mm]
10.490.82.2
20.921.12.3
31.421.42.4
41.971.62.5
52.561.82.6

TPS-2

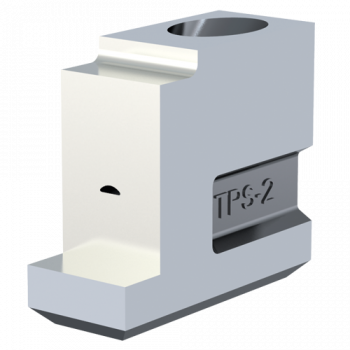

Side gating TPS 2 view
Side gating TPS S drawing
Gate Area and b2 Dimensions
A [mm²] ⌀ [mm] b2 [mm]
10.540.84.2
21.051.24.3
31.641.54.4
42.301.74.5
53.001.94.6
63.762.24.7
74.552.44.8
85.372.64.9
96.232.85.0

TPS-3

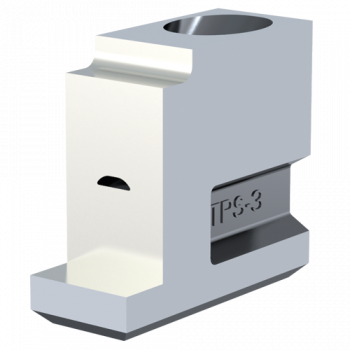

Side gating TPS 3 view
Side gating TPS S drawing
Gate Geometry – Full Range
A [mm²] ⌀ [mm] b2 [mm]
11.001.15.2
21.811.55.3
32.701.95.4
43.672.25.5
54.702.45.6
65.782.75.7
76.923.05.8
88.093.25.9
99.303.46.0
10max. 15.84.56.5

Distance to ejector

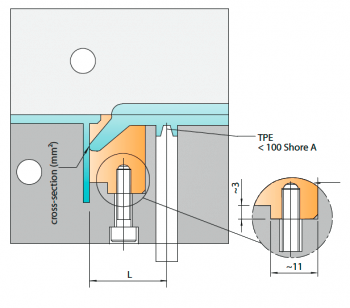

Side gating TPS distance to ejector A

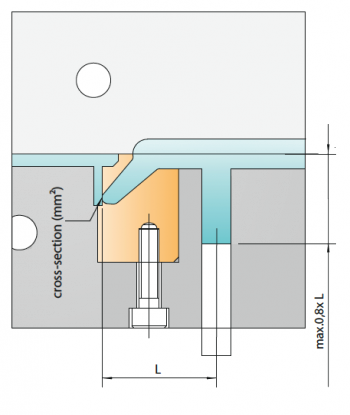

Side gating TPS distance to ejector B
Table for Distance L – SGC
Table for Distance L
flexible materials rigid materials
SGC-S~ 18~ 23
SGC-1~ 22~ 30
SGC-2~ 28~ 38
SGC-3~ 33~ 47

Examples of installation

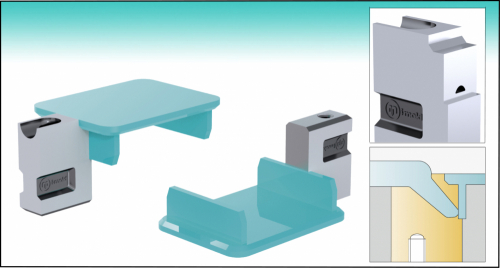

Side gating TPS example side gating Standard installation

Side gating – standard installation

12

you can also find all information in our product catalogue.

side gating TPS

Side gating TPS example side gating Standard installation

Side gating – for flat contours

side gating TPS

Side gating TPS example side gating Standard installation

Side gating – for flat contours

Downloads Further documents CAD DATA/STP
