TGLL Sizes / Shot Weights

.cytec-2102 .cytec-element.cytec-element-5d07c75a0 > .cytec-background-overlay{--wpr-bg-374f6335-0420-46d0-863d-4b3f25c6c907: url('/pictures/csm_291A7498_a4cd09638c.jpg');}.cytec-kit-73{--wpr-bg-2163b4d2-0962-4f75-8551-9bcd9418875d: url('/pictures/background-1.png');}.cytec-kit-73{--wpr-bg-004c4566-996d-40e2-90e8-7aef944ff005: url('/pictures/background-1.png');}.cytec-kit-73{--wpr-bg-ec257e6d-69d8-4c87-87b2-a35e9b847607: url('/pictures/background-1.png');}.story-with-background{--wpr-bg-04d92df7-beb7-4680-82af-2040afb66fcb: url('/system/addons/css/');}.cytec-2102 .cytec-element.cytec-element-5d07c75a0 > .cytec-background-overlay{--wpr-bg-b91e1a31-8149-4e18-a906-6c69d0f47e60: url('/pictures/csm_291A7498_a4cd09638c.jpg');}

The following table shows possible shot weights in relation to the viscosity of the used plastics.

	TGLL-1	TGLL-2	TGLL-3
Max. contour depth	8.5	10.5	12.5
Gate size	0.6 – 1.2	0.8 – 1.8	0.5×4.5 – 1.5×5.5
Channel Ø (mm)	4	6	8
Low viscosity (NV)*	35	120	1000
Medium viscosity (MV)*	25	75	500
High viscosity (HV)*	15	50	300

* Max. shot weight (g) | NV: low viscosity | MV: medium viscosity | HV: high viscosity

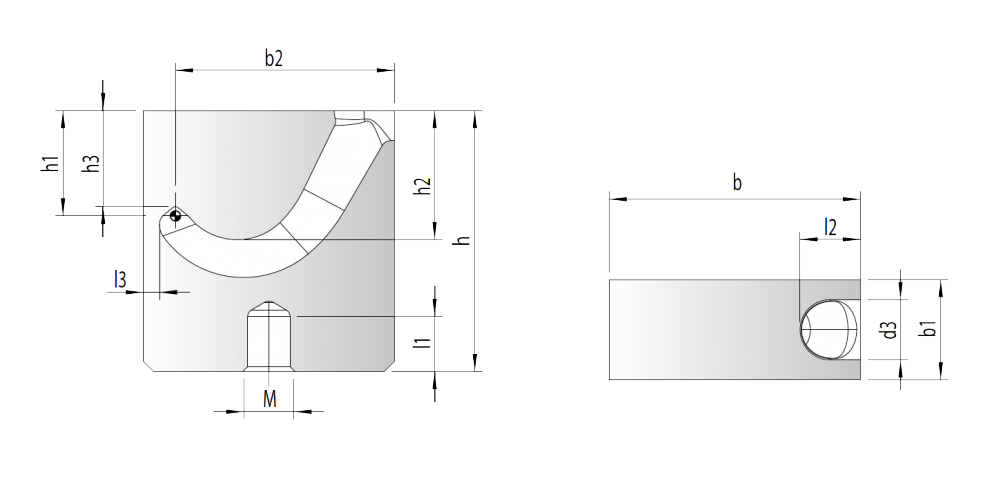

TGLL Detailed Dimensions

TGLL Detailed Dimensions
Type	b	b1	b2	d3	h	h1	h2	h3	l1	l2	l3	M	HRC
TGLL-1	18	8	15.7	4	22	8.5	9.9	7.8	5.5	4.5	1.2	5	54±2
TGLL-2	25	10	21.8	6	26	10.5	12.9	9.6	5.5	6	1.6	5	54±2
TGLL-3	30	12	26	8	30	12.5	14.8	11.6	6.5	7	2.2	6	54±2

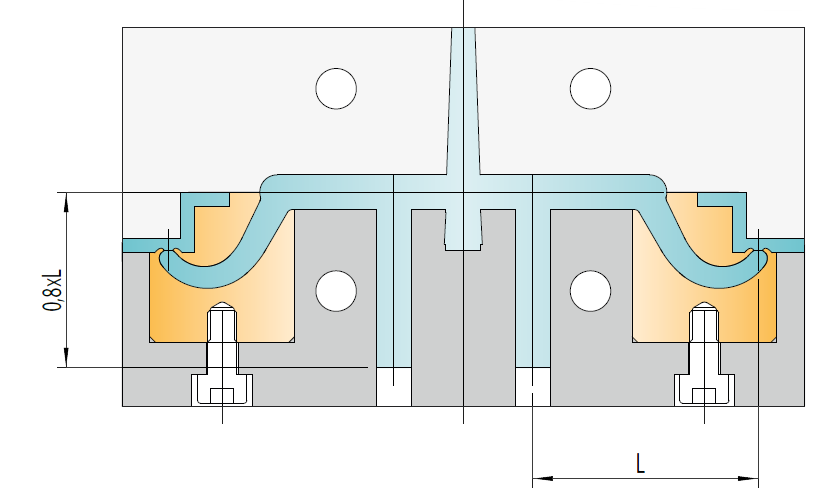

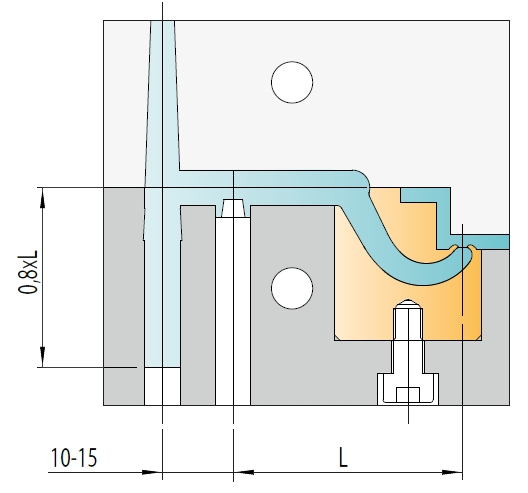

TGLL Cavities – Distance L

Recommended Distance L for Cavities
Type	TPE, TPU etc.	PE, PP, PET etc.	PC/ABS, PA, POM, HI-PC etc.	PA+GF, PC, SAN, PMMA etc.
TGLL-1	21–27 mm	27–34 mm	34–40 mm	X
TGLL-2	28–34 mm	33–40 mm	39–45 mm	X
TGLL-3	33–40 mm	40–49 mm	46–55 mm	X

X = Restricted suitability for rigid and reinforced plastics

Hydraulic Cylinder
Hydraulic cylinders are essential components in fluid technology, enabling precise linear movements and high forces
Core pull & locking cylinders
Core pull and locking cylinders are specialized hydraulic cylinders used in injection moulding machines for the precise movement and securing of moulds
Precision components for efficient injection molding processes
Our products, such as air valves, sliders, and gas injectors, enhance the performance and reliability of your injection moulds
Clamping systems for machine tools
CYTEC specializes in hydraulic cylinder technology, offering advanced cylinder and clamping systems, as well as essential machine components for mold construction and machining.

CyTec UK – Precision Cylinder & Mould Technology
The company is based in Oldham, UK, and provides solutions from CyTec, AHP Merkle, I-Mold, Servomold, Ermanno Balzi, and Feller Engineering.
Servo-driven mould solutions
ServoMold specializes in servo-electric automation solutions for injection moulds. They provide components like unscrewing devices and linear drives to enhance precision and efficiency in mould construction.
Quick coupling systems
FlexQ supplies multi-coupling plates and single couplings for water, oil and air, allowing fast and safe mould changes.
Ceramic insulated hot runners
HEATLOCK builds hot runner systems and nozzles with the STRAIGHT heater for total melt control and lower energy use.

Call Us

Our Location

Special Function Cylinders

Compact & Built-in Cylinders

Additional Components

Advanced & High-Performance Cylinders

CYTEC Cylinder & Clamping Technology

Cylinder Technology

Clamping Systems

Machining Components

Complete Range of Rapid Plug and Unplug Solutions for Equipping Mould Cooling and Conditioning Circuits

The Servomold system

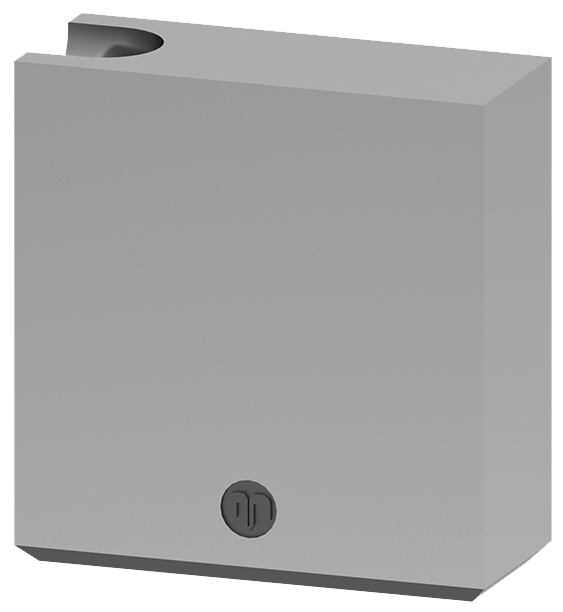

Tunnel Gate Insert - TGLL

Contourable

Space-saving, contourable tunnel gate insert.

Cavities

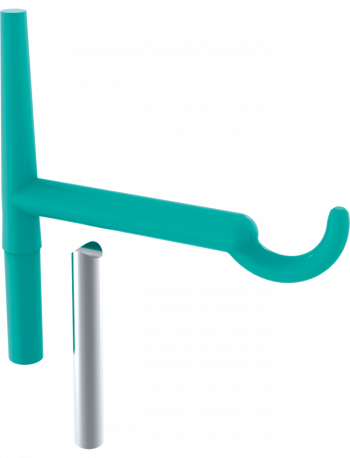

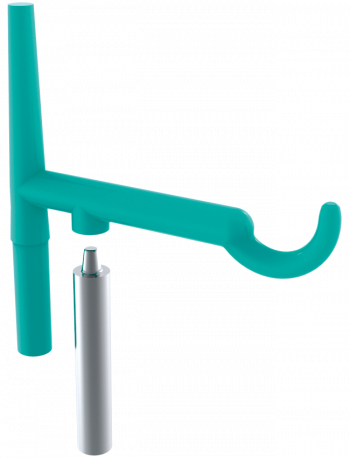

Example for suplementary ejector

Examples of installation

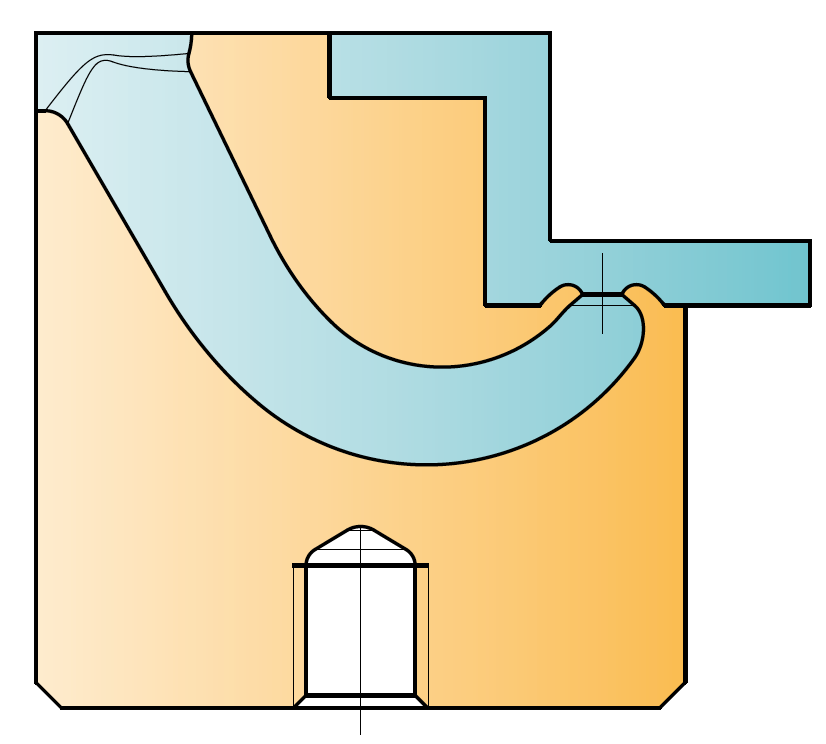

TGLL low contour step

Downloads S1 Further documents CAD DATA/STP
