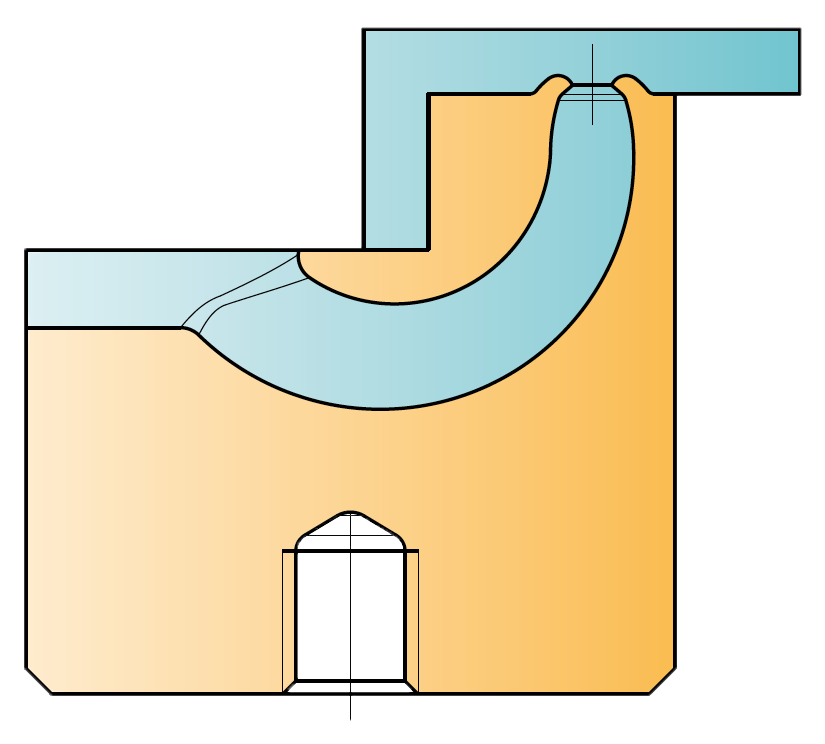

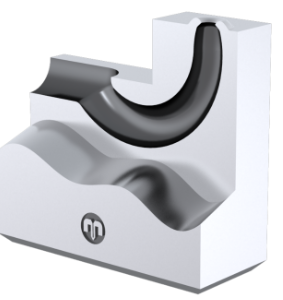

| TGHL-1 | TGHL-2 | TGHL-3 | |
|---|---|---|---|
| max. Konturtiefe | 2 | 3 | 3 |
| Anschnitt | 0.6 - 1.2 | 0.8 - 1.8 | 0.5×4.5 - 1.5×5.5 |
| Ø Kanal | 4 | 6 | 8 |
| NV* | 35 | 120 | 1000 |
| MV* | 25 | 75 | 500 |
| HV* | 15 | 50 | 300 |
* max. shot weight (g) | NV: low viscosity | MV: medium viscosity | HV: high viscosity

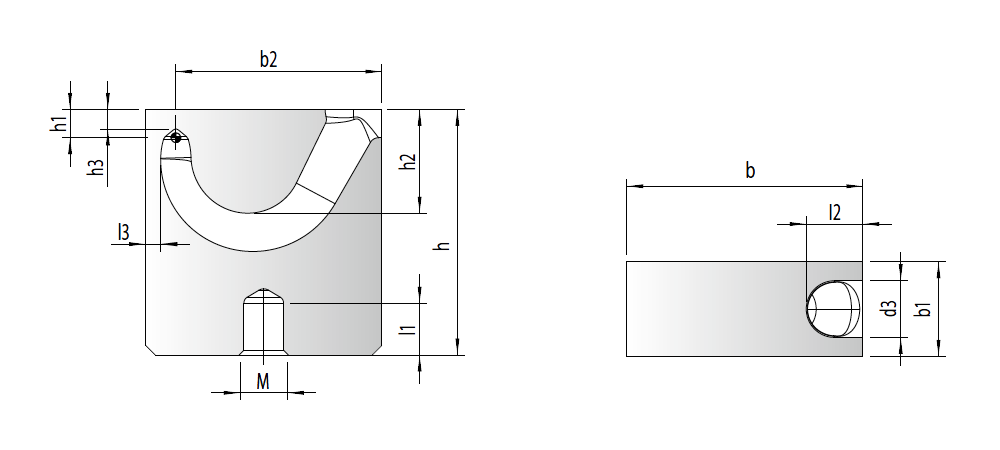

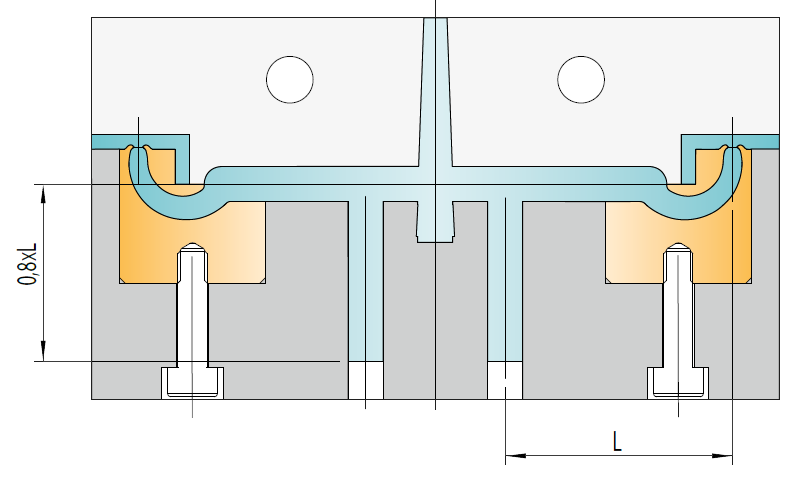

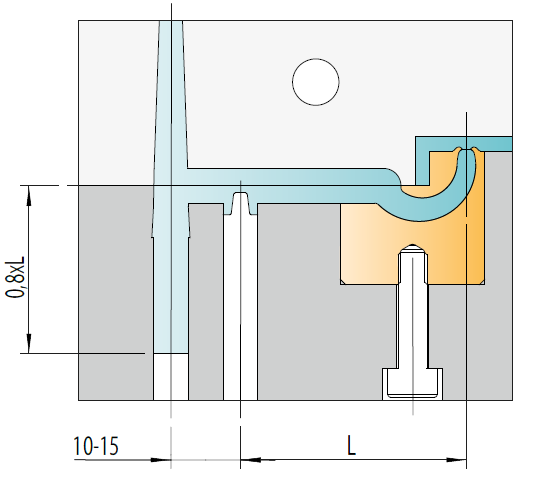

| b | b1 | b2 | d3 | h | h1 | h2 | h3 | l1 | l2 | l3 | M | HRC | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TGHL-1 | 18 | 8 | 15.7 | 4 | 22 | 2 | 7.6 | 4.86 | 5.5 | 4.5 | 1.2 | 5 | 54±2 |
| TGHL-2 | 25 | 10 | 21.8 | 6 | 26 | 3 | 11 | 5.6 | 5.5 | 6 | 1.6 | 5 | 54±2 |
| TGHL-3 | 30 | 12 | 26 | 8 | 30 | 3 | 12.2 | 6.6 | 6.5 | 7 | 2.0 | 6 | 54±2 |
| TPE, TPU etc. | PE, PP, PET etc. | PC/ABS, PA, POM, HI-PC etc. | PA+GF, PC, SAN, PMMA etc. | |
|---|---|---|---|---|
| TGHL-1 | 21–27 mm | 27–34 mm | 34–40 mm | X |
| TGHL-2 | 28–34 mm | 33–40 mm | 39–45 mm | X |
| TGHL-3 | 33–40 mm | 40–49 mm | 46–55 mm | X |
X = Restrictedly suitable for rigid and reinforced plastics
