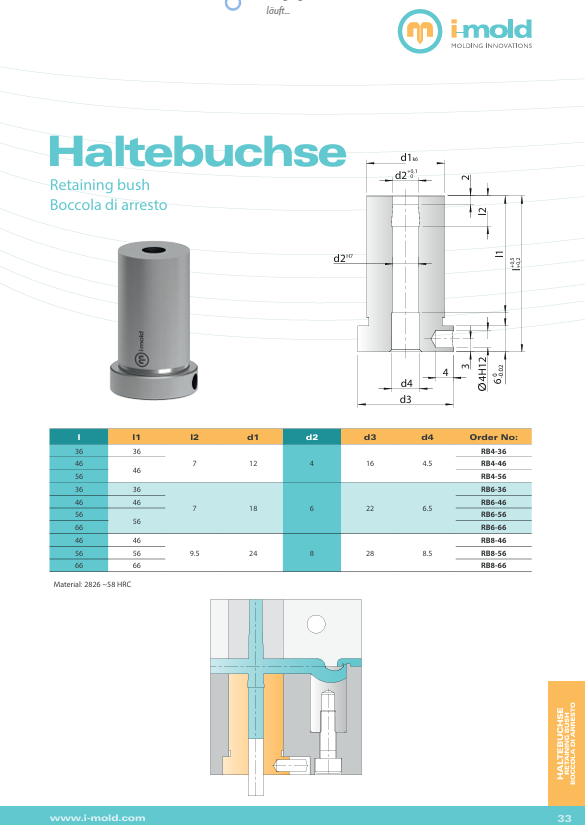

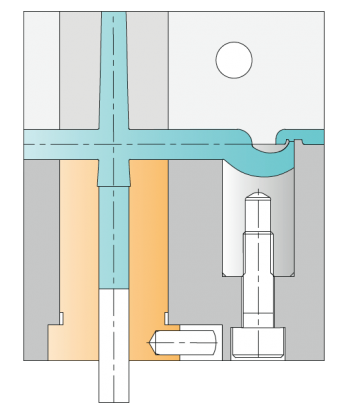

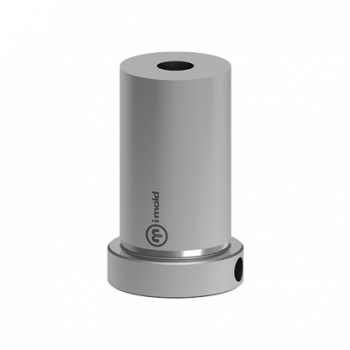

The universal i-mold retaining bush guarantees stable guidance of the system in all positions.

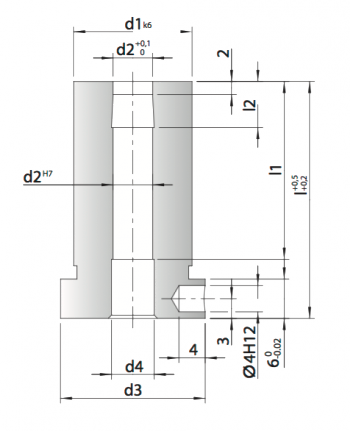

RB Component Dimensions
RB Item Dimensions
Item no.
l
l1
l2
d1
d2
d3
d4
RB4-36
36
36
7
12
4
16
4.5
RB4-46
46
46
7
12
4
16
4.5
RB4-56
56
46
7
12
4
16
4.5
RB6-36
36
36
7
18
6
22
6.5
RB6-46
46
46
7
18
6
22
6.5
RB6-56
56
56
7
18
6
22
6.5
RB6-66
66
56
7
18
6
22
6.5
RB8-46
46
46
9.5
24
8
28
8.5
RB8-56
56
56
9.5
24
8
28
8.5
RB8-66
66
66
9.5
24
8
28
8.5
